2×42.5°FA+2×8°FA-MT Jumper
Introduction
2×42.5°FA+2×8°FA -MT jumper series is widely used in the internal connection of high-speed optical transceiver. The 42.5° FA is used as the direct coupling of RX fiber to the PD array and the 8° FA is used as the direct coupling of TX fiber to the LD array. The 8° FA with isolators is beneficial for increasing the isolation. The MT ferrule is used as an optical interface inside high-speed transceiver. The MT core can be directly connected through the guide Pin following MT standards.
Features
  • Accurate fiber core spacing
  • Excellent environmental stability and reliability
  • Low insertion loss
  • Accurate polishing angle
  • Customization acceptable
  • ROHS and REACH compliant
Application
  • High speed optical transceiver

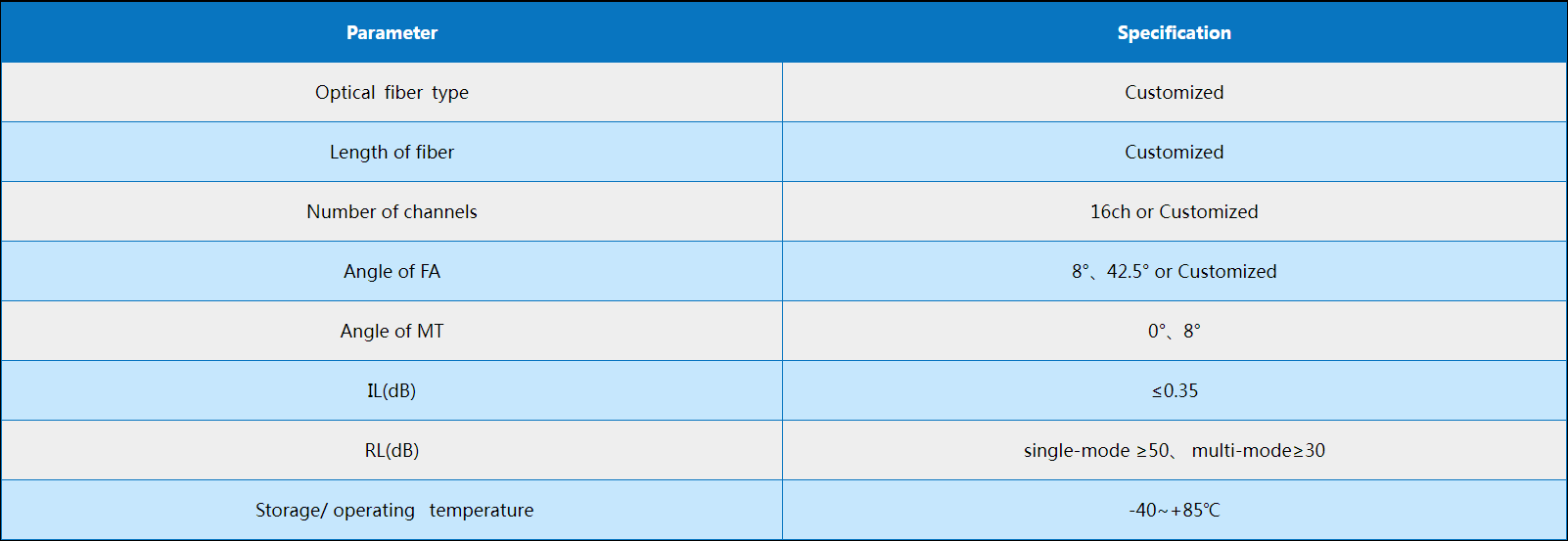

Specification
